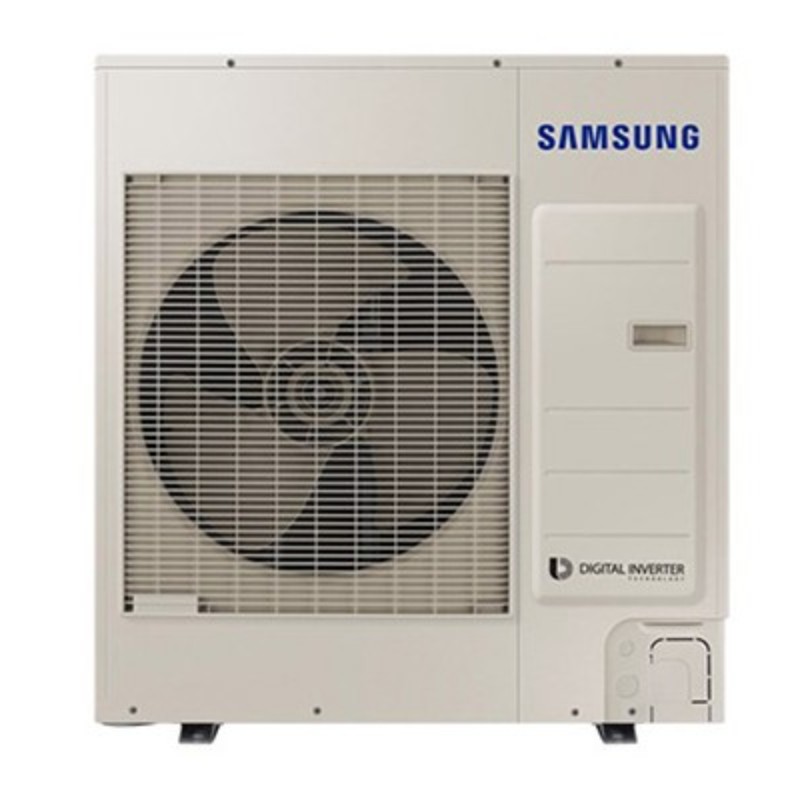

Samsung 8kW R32 Three-Phase Gen 6 Monobloc Heat Pump

Samsung 8kW Gen 6 R32 Monobloc Heat Pump, code: AE080RXYDGG/EU

The Samsung 8kW EHS Monobloc Heat Pump is an affordable, reliable, and efficient monobloc heat pump using R32 as the refrigerant. They have a great track record of solid performance in the UK and a 7 year warranty if you complete their EHS installer training.

You can install these with a pre-plumbed cylinder or buy a MIME03EN control kit. However, these are a standalone heat pump so all additional and necessary components will need to be purchased in addition to the outdoor unit.

Product Features

Heat Pump Specifications Nominal capacity 8.00kW Output at W45/A-2 6.50kW Power input W35/A-7 3.02kW Compressor type BLDC Twin Rotary Refrigerant type R32 Refrigerant volume 1.15kg Nominal flow rate 23.1 L/m Minimum water volume 30 L
Nominal capacity
8.00kW
Output at W45/A-2
6.50kW
Power input W35/A-7
3.02kW
Compressor type
BLDC Twin Rotary
Refrigerant type
R32
Refrigerant volume
1.15kg
Nominal flow rate
23.1 L/m
Minimum water volume
30 L

Technical Specifications

Heat Pump Specifications Nominal capacity 8.00kW Output at W45/A-2 6.50kW Power input W35/A-7 3.02kW Compressor type BLDC Twin Rotary Refrigerant type R32 Refrigerant volume 1.15kg Nominal flow rate 23.1 L/m Minimum water volume 30 L
Nominal capacity
8.00kW
Output at W45/A-2
6.50kW
Power input W35/A-7
3.02kW
Compressor type
BLDC Twin Rotary
Refrigerant type
R32
Refrigerant volume
1.15kg
Nominal flow rate
23.1 L/m
Minimum water volume
30 L
