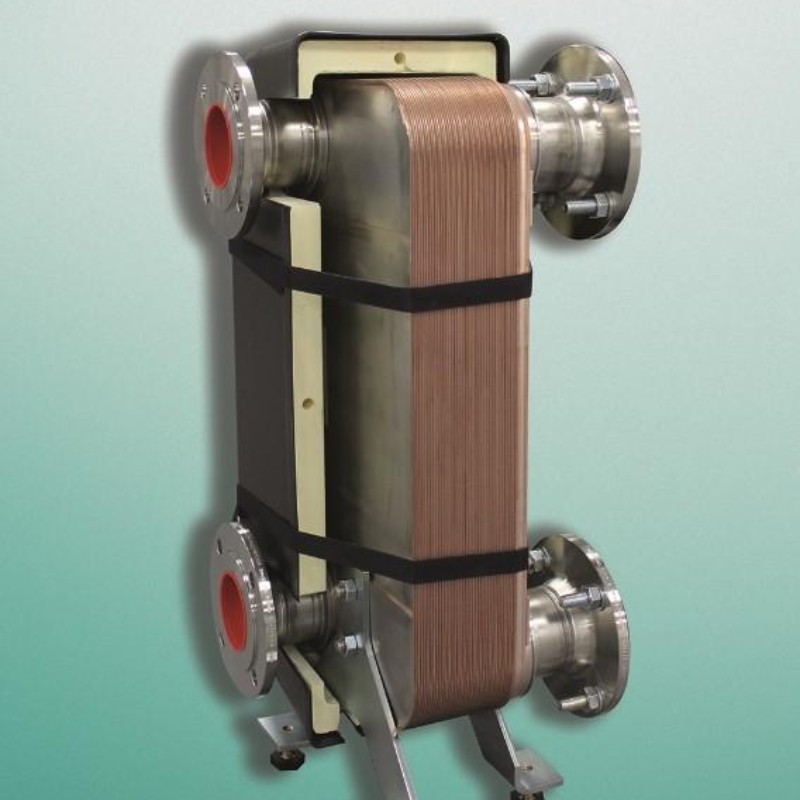

Vaillants 240kW Insulated Plate Heat Exchanger set. code: 0010031891
Contact us

240kW insulated plate heat exchanger set for application with heat pump cascade and commercial setups. This can be used in cascaded Vaillant air source heat pumps (or boilers) or hybrid systems involving a boiler and a heat pump.



Technical Specifications

PHE C 240-40: Plate heat exchanger 240kW SetProduct Code: 0010031891 This Contains: 1No. Heat exchanger, 240kW – PHE C 240-40       0020137070 1No. Pipe, cpl. connection cut DN 65        0020107886 1No. Insulation, f.P2P-hex       0020137070 1No. Insulation, f. connection pipes P2P hex       0020248930 Dimensions* (refer to diagram) Unit ABCDEFG mm421532636161271321200 HIJKLMN mm2086135175105400677 *note dimensions do not include insulation – see Technical Brochure attached
This Contains:
1No. Heat exchanger, 240kW – PHE C 240-40
0020137070
1No. Pipe, cpl. connection cut DN 65
0020107886
1No. Insulation, f.P2P-hex
0020137070
1No. Insulation, f. connection pipes P2P hex
0020248930
Dimensions* (refer to diagram)
