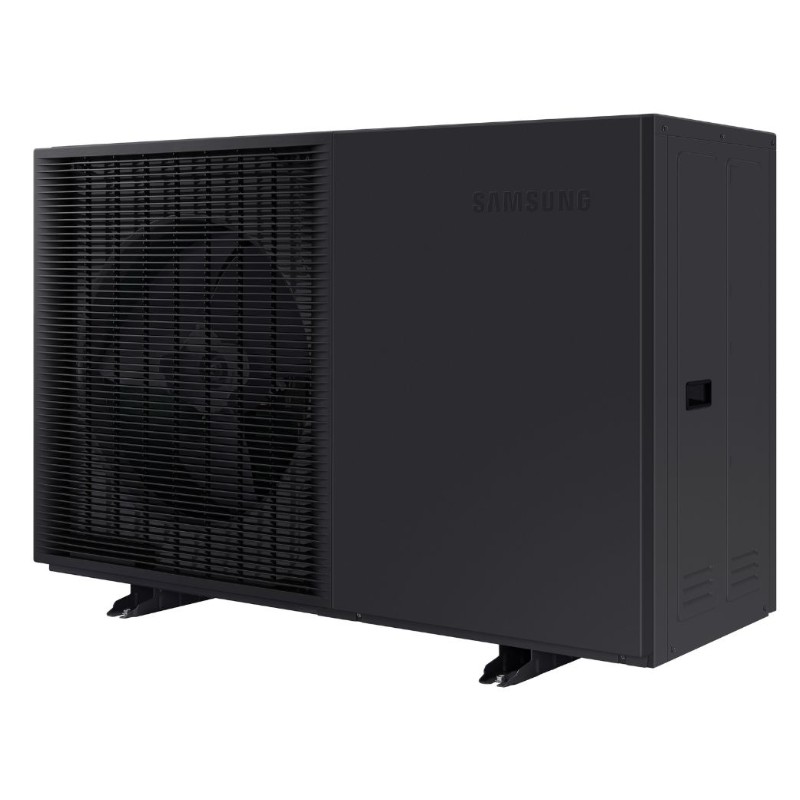

The Samsung 12kW Gen 7 R290 Integrated Heat Pump is a reliable and efficient single fan monobloc unit. This new version incorporates some hydraulic components into the unit, as well as the control kit and wifi kit. Samsung heat pumps have a great track record of solid performance in the UK and a 7 year warranty if you complete their training.

Looking for a whole kit?

Head over to our kit builder to add everything you need in one go!

Configure as kit

Using R290 provides this unit with a longer shelf life when compared to the R32 range, which is being phased out in 2026. These units can be installed with pre-plumbed cylinders or standard heat-pump cylinders.

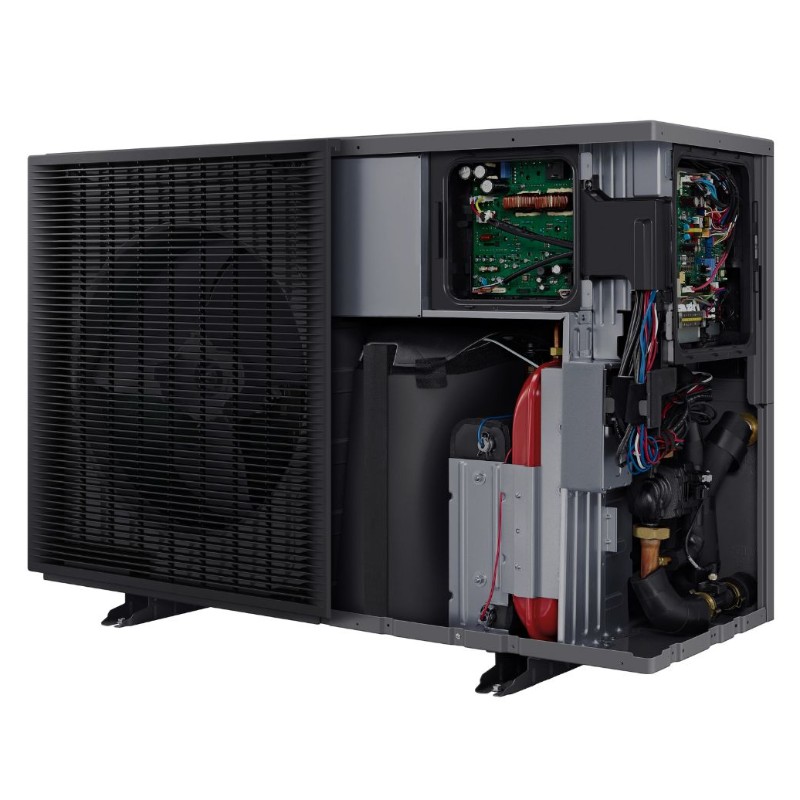

Components included in the monoblock unit:

• Primary Pump – UPM4XLK 25-90/130

• Samsung Flow Sensor
• Control Centre
• EHS Wifi Kit
• Expansion Vessel – 10L, 0.3 MPa working pressure
• Water pressure sensor
• Gas seperator air vent
• Strainer
• 2.9 bar pressure relief valve
