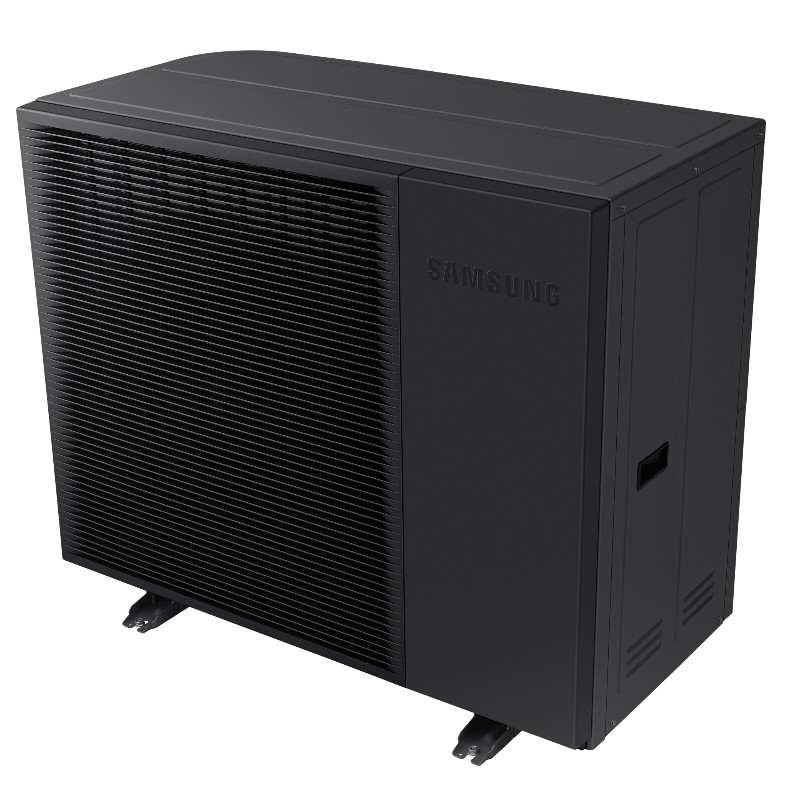

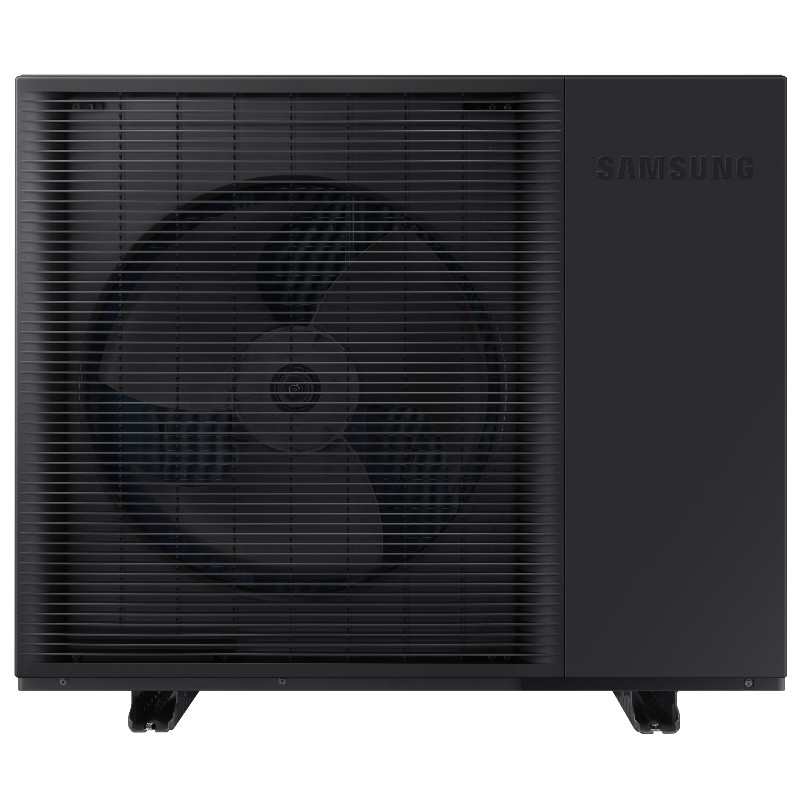

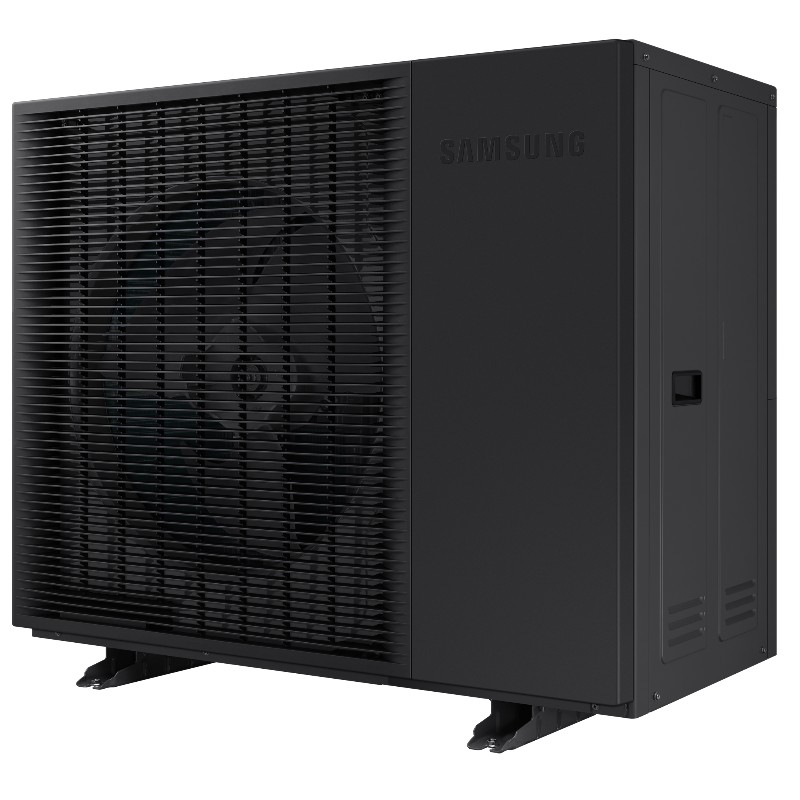

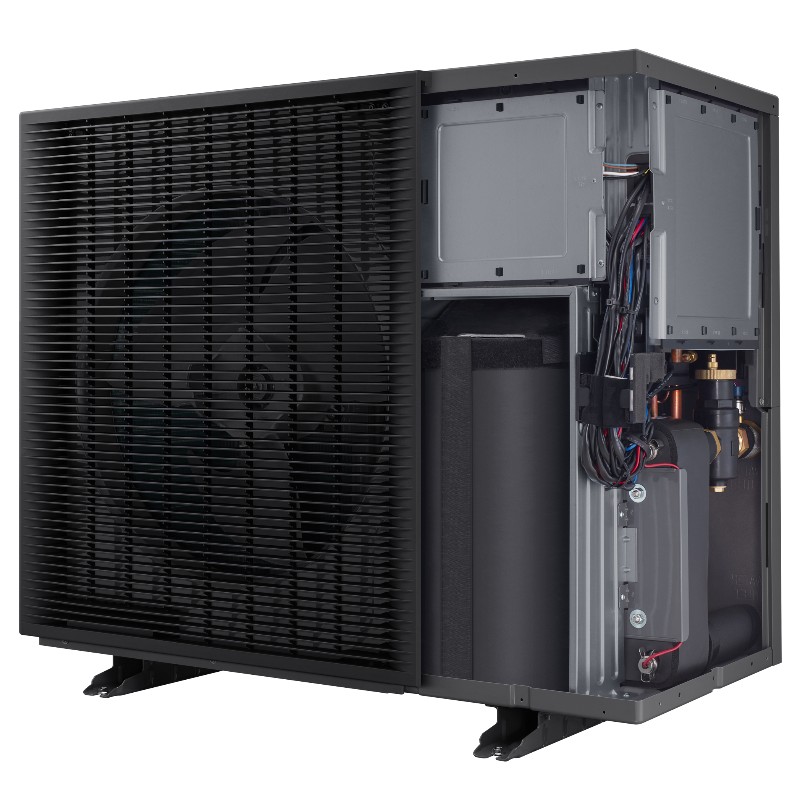

Samsung 12kW R290 Three-Phase Monobloc Heat Pump

Samsung 12kW 3-Phase Gen 7 R290 Monobloc Heat Pump, code: AE120CXYDGK/EU

The Samsung 12kW Gen 7 R290 Heat Pump is a reliable and efficient single fan monobloc unit. This is the first of the Samsung range to incorporate the lower GWP refrigerant that is R290. Samsung heat pumps have a great track record of solid performance in the UK and a 7 year warranty if you complete their training.

Using R290 provides this unit with a longer shelf life when compared to the R32 range as this is being phased out in 2026. These units can be installed with pre-plumbed cylinders or standard heat-pump cylinders. These are a standalone heat pump so all additional and necessary components will need to be purchased in addition to the outdoor unit.

*Please ask the Heat Team for further details regarding the MIM-EN control board and compatible pre-plumbed cylinders*

Product Features

Heat Pump Specifications Nominal capacity 12.00kW Output at W45/A-2 11.78kW Power input W35/A-7 4.00kW Compressor type Rotary Refrigerant type R290 Refrigerant volume 1.25kg Nominal flow rate 34.60 L/m Minimum water volume 50 L
Nominal capacity
12.00kW
Output at W45/A-2
11.78kW
Power input W35/A-7
4.00kW
Compressor type
Rotary
Refrigerant type
R290
Refrigerant volume
1.25kg
Nominal flow rate
34.60 L/m
Minimum water volume
50 L

Technical Specifications

Heat Pump Specifications Nominal capacity 12.00kW Output at W45/A-2 11.78kW Power input W35/A-7 4.00kW Compressor type Rotary Refrigerant type R290 Refrigerant volume 1.25kg Nominal flow rate 34.60 L/m Minimum water volume 50 L
Nominal capacity
12.00kW
Output at W45/A-2
11.78kW
Power input W35/A-7
4.00kW
Compressor type
Rotary
Refrigerant type
R290
Refrigerant volume
1.25kg
Nominal flow rate
34.60 L/m
Minimum water volume
50 L
