Mitsubishi Ecodan R290 5kW Monobloc Air Source Heat Pump Package

Mitsubishi Ecodan R290 5kW Monobloc Air Source Heat Pump Package
Mitsubishi Ecodan R290 5kW Monobloc Air Source Heat Pump Package - Image 2

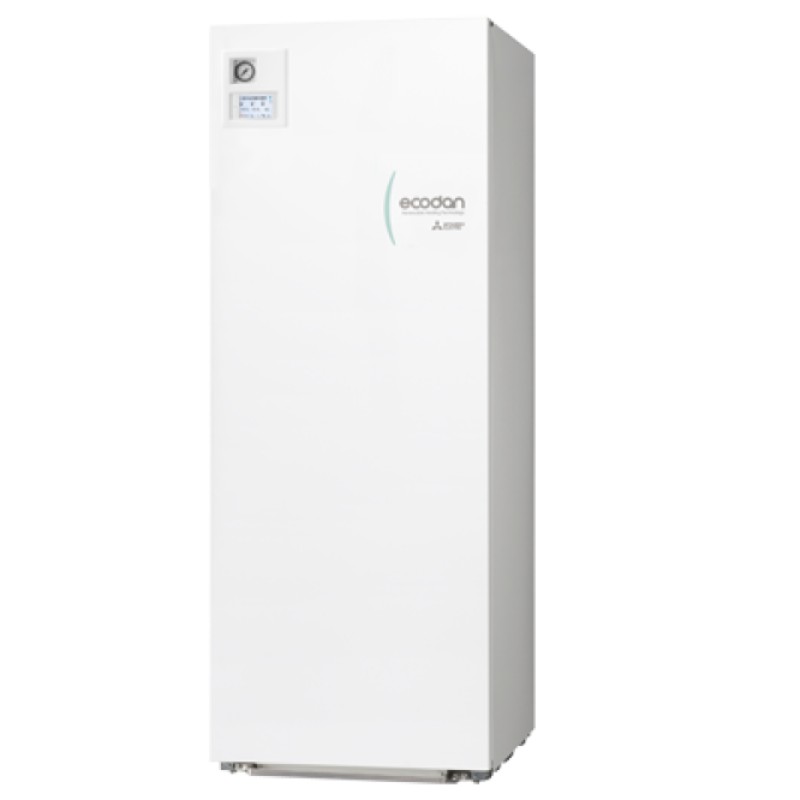

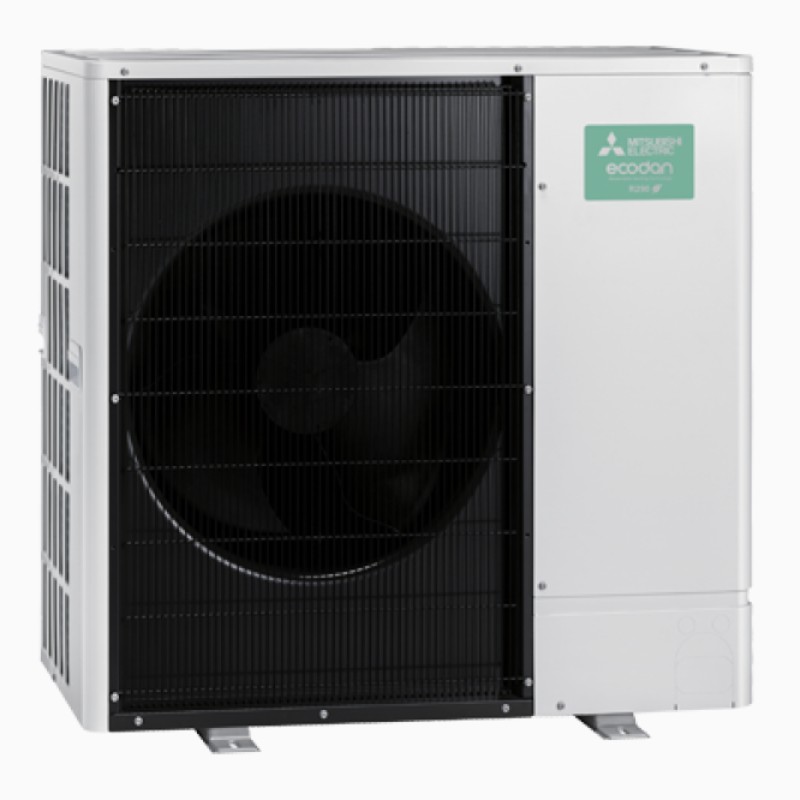

5kW heat pump with a standalone pack or with a cylinder, code: PUZ-WZ50VAA
Contact us

This innovative model has a guaranteed operation range down to -25°C ambient temperature, while utilising the refrigerant properties of R290 to efficiently achieve high water temperatures up to 75°C and a low GWP (Global Warming Potential). Making the Ecodan R290 heat pump the perfect renewable alternative to conventional fossil fuel boilers.

Key Features: A+++ heating efficiency, Ultra Quiet Noise levels,  Melcloud enabled, High water Flow temps of up to 75°C, fully electric source of heating and hot water, minimal energy consumption, flexible product placement, remote control/monitoring/ maintenance and technical support, ideal for energy storage, zero carbon ready.




*1 For air source heat pump outdoor units only. *2 Extension from 5 years to 7 years available via a warranty extension package *3 Training sessions can be 100% funded via RDF. For complete details please consult Mitsubishi’s T&Cs. Send an e-mail to leswarranty@meuk.mee.com to register the warranty of your heat pump


var btn = document.getElementsByClassName(“collapse”); for (let i = 0; i < btn.length; i++) { btn[i].addEventListener("click", function () { this.classList.toggle("active"); let content = this.nextElementSibling; if (content.style.display === "block") { content.style.display = "none"; } else { content.style.display = "block"; } }); }

Technical Specifications

Technical Information Nominal capacity 5kW Compressor type Rolling piston type rotary Refrigerant type R290 (GWP 3) Refrigerant volume 0.6kg Nominal flow rate 6.5 to 14.3L/m Minimum water volume -L
Nominal capacity
5kW
Compressor type
Rolling piston type rotary
Refrigerant type
R290 (GWP 3)
Refrigerant volume
0.6kg
Nominal flow rate
6.5 to 14.3L/m
Minimum water volume
-L
TypeDescription Packaged CylinderStandalone FTC7 -Electrical- Immersion HeaterYes – Wifi Interface Yes Yes Flow and Return Water Temperature Thermistor Yes Yes Flow Temp Controller Yes Yes DHW Upper and Lower water temp thermistor Yes – -Mechanical- Plate Heat Exchanger Yes – Primary Circulation Pump Yes – 3-way Motorised Valve Yes – Scale Trap Yes – Primary System Pressure Gauge Yes – AAV, Filling Loop, Drain Valve Yes – DHW Drain Valve Yes – G3 Kit* Yes – Magnetic Filter Yes Yes Insulated Flexible Pipes Yes Yes Flow Sensor Yes Yes
Type
Description
Packaged Cylinder
Standalone FTC7
-Electrical-
Immersion Heater
Yes
–
Wifi Interface
Yes
Yes
Flow and Return Water Temperature Thermistor
Yes
Yes
Flow Temp Controller
Yes
Yes
DHW Upper and Lower water temp thermistor
Yes
–
-Mechanical-
Plate Heat Exchanger
Yes
–
Primary Circulation Pump
Yes
–
3-way Motorised Valve
Yes
–
Scale Trap
Yes
–
Primary System Pressure Gauge
Yes
–
AAV, Filling Loop, Drain Valve
Yes
–
DHW Drain Valve
Yes
–
G3 Kit*
Yes
–
Magnetic Filter
Yes
Yes
Insulated Flexible Pipes
Yes
Yes
Flow Sensor
Yes
Yes
Product TypeStandard Account Holder Accredited Ecodan Installer  Business Solutions Partner  Ecodan Selection Tool Access No Yes Yes Product Warranty (<20kW) 3 Years 5 Years*1*27 Years*1 Free Trainings (per year) 0 0*35*3
Product Type
Standard Account Holder
Accredited Ecodan Installer
Business Solutions Partner
Ecodan Selection Tool Access
No
Yes
Yes
Product Warranty (<20kW)
3 Years
5 Years*1*2
7 Years*1
Free Trainings (per year)
0
0*3
5*3

Documentation & Brochures
